UM/316/2020/BIM
- Duration: 50 Hours
- Year: 2019
- Area : 360 m2
- Total Manpower : 2
- Location: USA
- Service Type: BIM
- LOD: 250
Objective
Objective of the project is to Model the building internals and externals in Revit.
Inputs

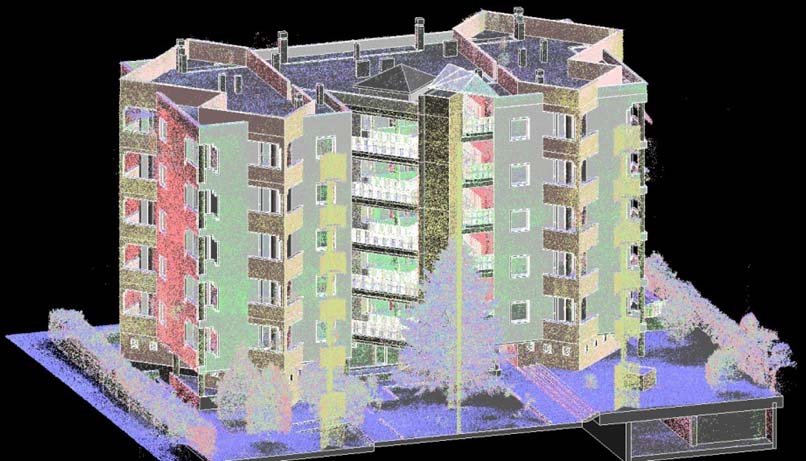

- Point cloud data in .rcp format with all supporting files.
- Revit template.
- 360° photos
Scope
The Scope of the project included modeling of the following elements.
- External walls
- Windows / curtain walls part of the externals
- External floors (e.g. balconies, terraces, etc.
- Stairs
- Roof
- Railings of the balconies
Deliverables:
- A Complete 3D model of all the internal elements in .rvt format
